Arcade goal counter
This goal counter is designed as a purely mechanical counting system for analog games. It displays the score without electronics, without power, and without software – reduced to the essentials.

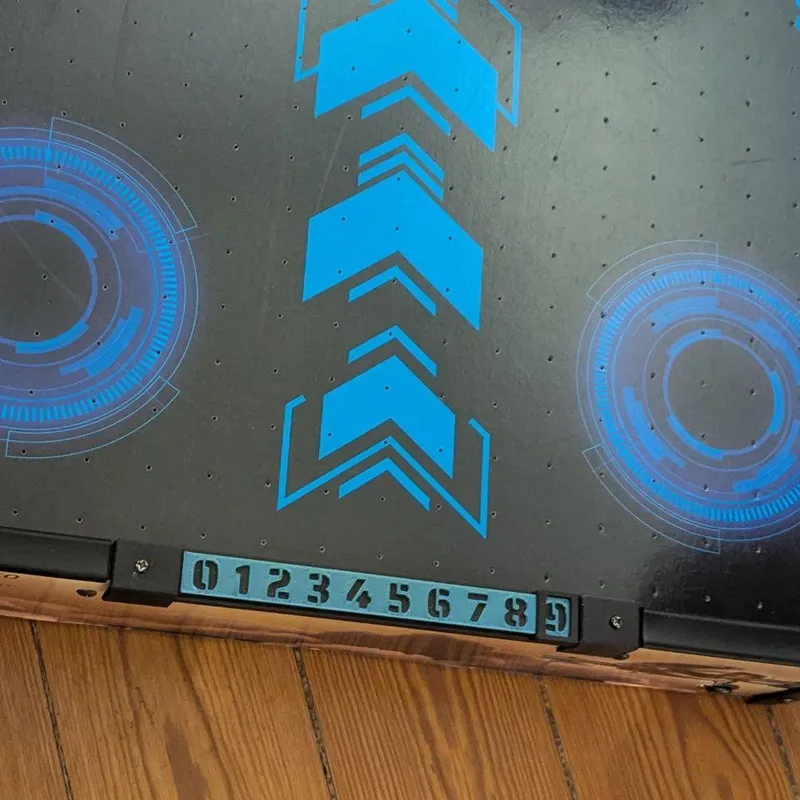

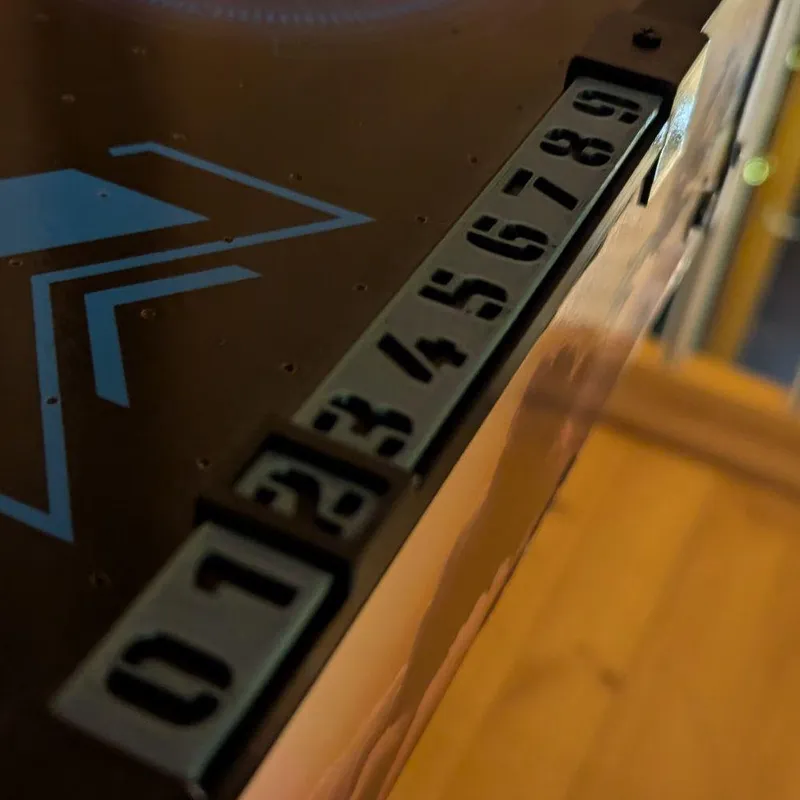

Originally, the object was created for an airliner air hockey table, where the existing counting system was neither functionally nor aesthetically convincing. From this specific application, the counter was further developed and designed to be used in other analog arcade games and setups.

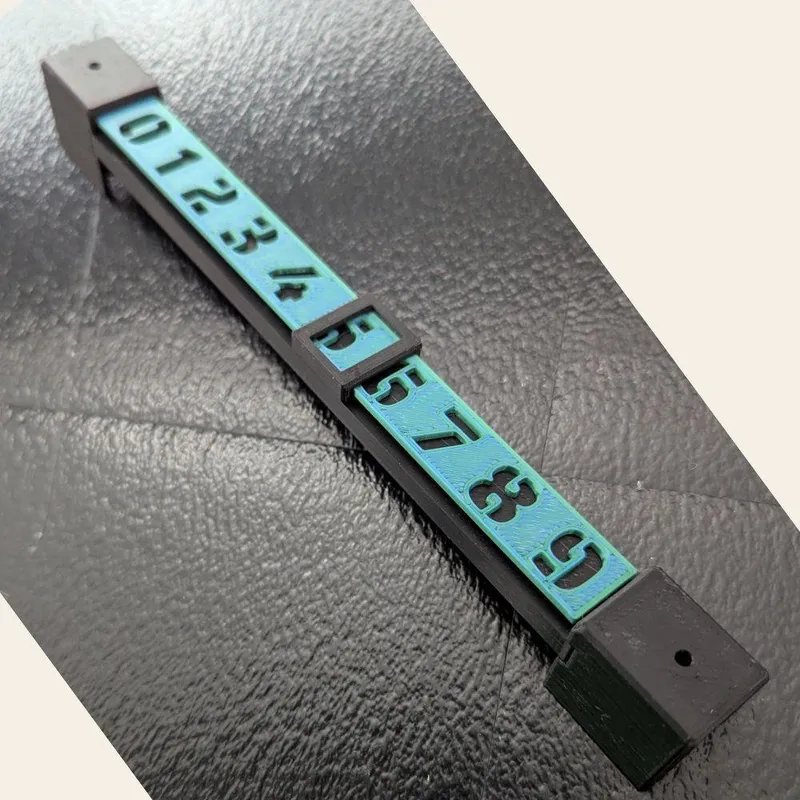

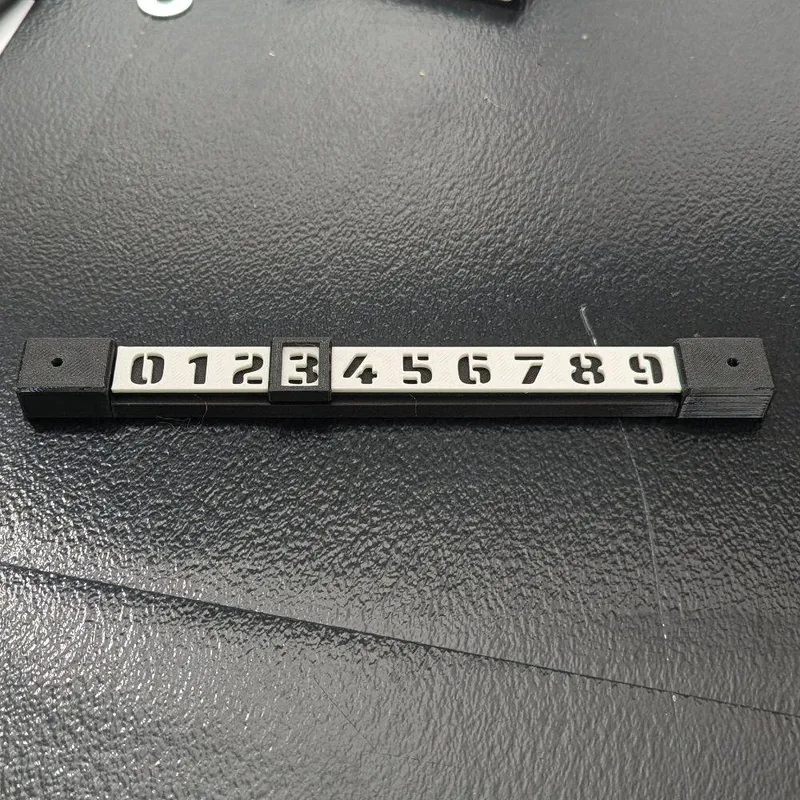

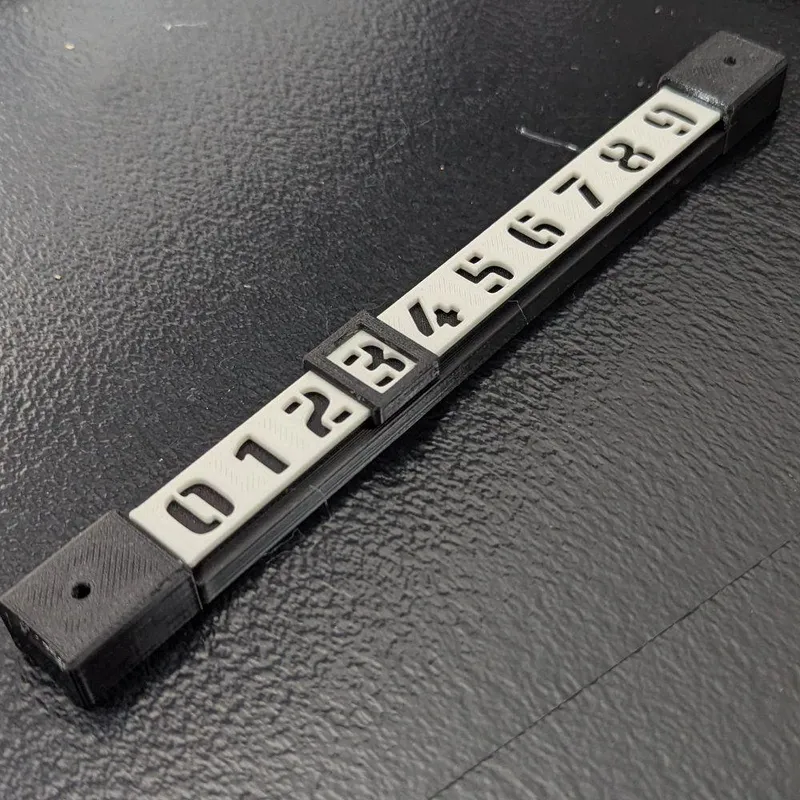

The result is a modular, movable number counter that is easy to read and mechanically reliable. The construction is deliberately designed to be unobtrusive so that it fits into different gaming environments without standing out.

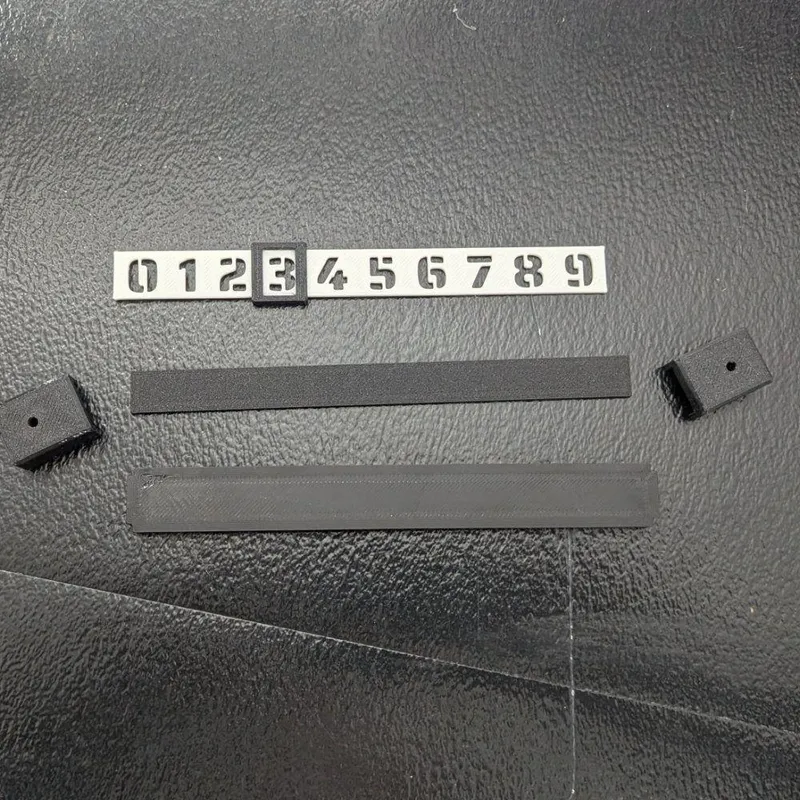

The goal counter consists of six individual components that are assembled into a stable unit.
The construction is designed to be mounted with screws and remains permanently game-proof.

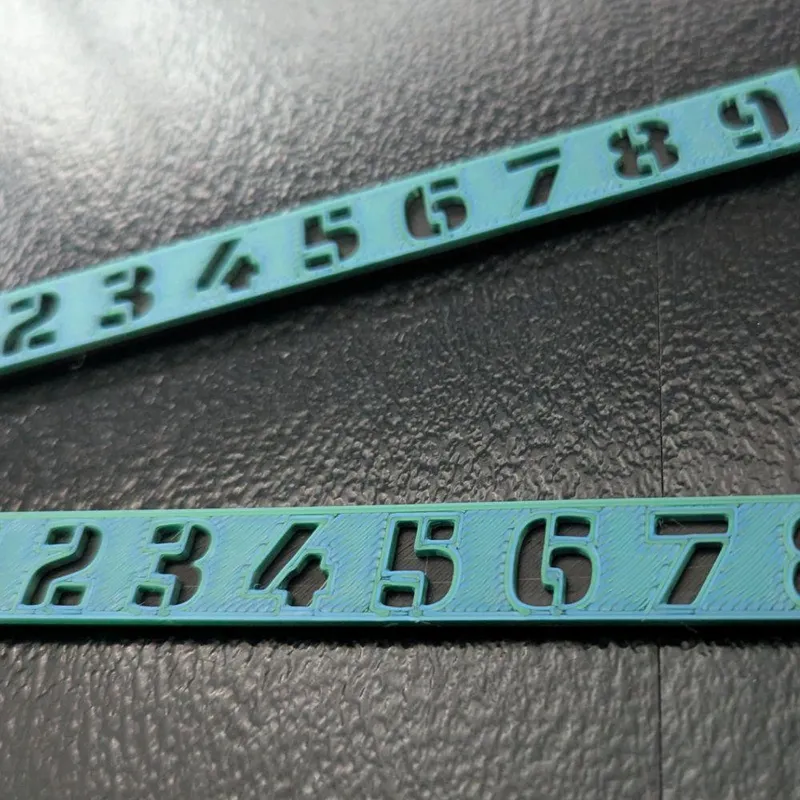

Certain components – especially the bridge, the bridge holders, and the number slider – were made of PETG. This material choice was necessary because a floating bridge was realized in the original application, which is subjected to greater mechanical stress. Other parts were printed in PLA. A complete implementation in PLA is generally possible, depending on the area of application.
Tools used
- 3D printer
- Filament
- Blender
- UHU-Allplast
